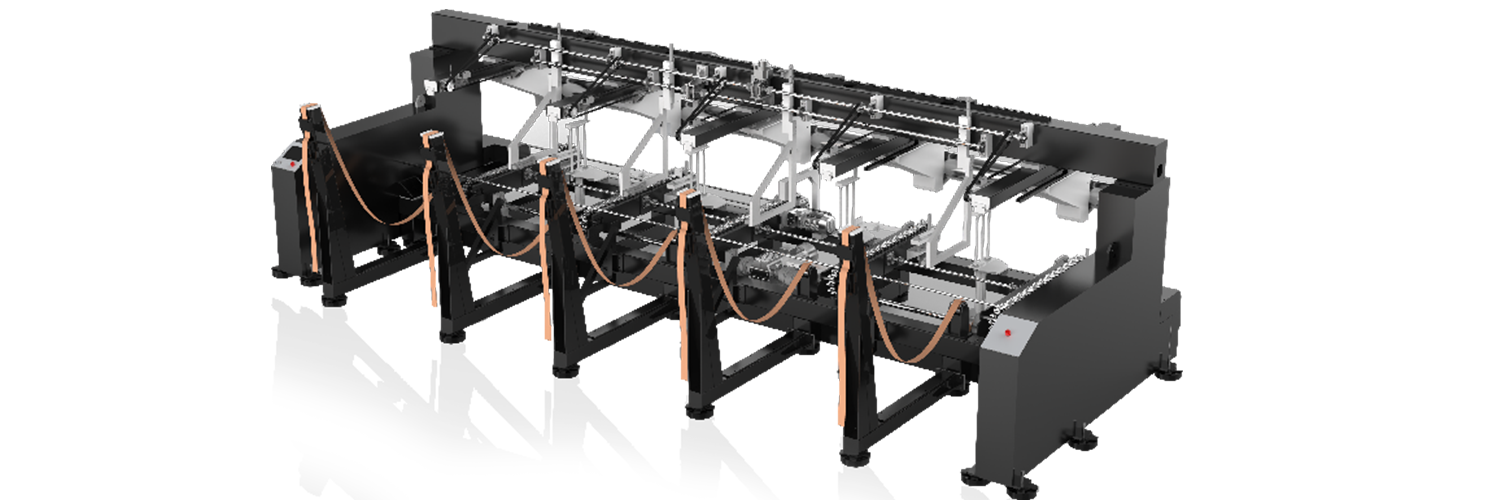

Fully Automatic Loading Device
Optional fully automatic loading devices can improve work safety, reduce the risk of injury, and reduce the workload of workers. Full loading just suitable for Round, sqaure,rectangle tube.
Maximum loading weight of stack: 2.5T
Minimum feeding pipe length: 4500MM
Maximum feeding pipe length: 6500MM
Maximum tube weight:150KG
Pipe loading range::Φ20-240mm
Loading range of square tube: □20*20--240*240mm

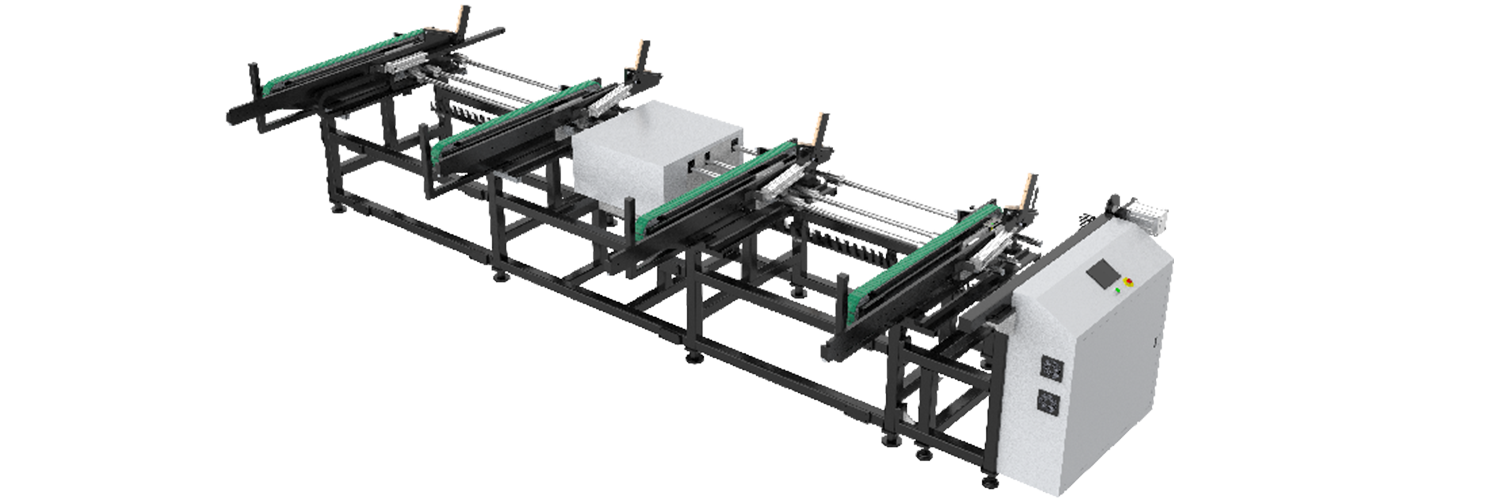

Semi-Automatic Loading Device
It can be used for pipes of various shapes without any restrictions.
Maximum loading weight of stack:2T
Minimum feeding pipe length:4500MM
Maximum feeding pipe length:6500MM
Maximum tube weight:500KG
Pipe loading range:Φ20-220mm
Loading range of square tube:□20*20--250*250mm
Weight of semi-automatic feeder:2.42T
Receiving Machine
There are three different types available:
servo driven feeding machines for square pipes, rectangularpipes, profiles, and complex cross-section pipes, Variable diameter wheel inclined surface materialreceiving frame is used for round and square pipes, A simple inclined material receiving frame is usedfor shorter and lighter round and square pipes.
Chuck Clamping Range
Professional two-chuck configuration and can easily handle different kinds of tubes. For example, round tubes, ovaltubes, square tubes,D-shaped tubes, channel beams, angle beams, H beams, T beams,etc.
FSCUT5000B Control System
FSCUT5000B laser cutting control system, developed on the basis of Windows 10 operating system, communicates through Erthercat bus and integrates laser cutting modules with special functions. The simple and concise interface, power and practical functions, touch display screen and wireless keyboard and mouse make it easy to operate.
Technical Parameters
Application Industry
Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.
Cutting Samples
Pre-Sales Service
Free Sample Cutting Service
For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will cut it in our factory and make a video to show you the cutting process and results, or send you a sample to check the cutting quality.
Advancing Solution Design
According to the customer's product processing requirements, we can design unique solutions for customers to support higher manufacturing efficiency and better processing quality.
Custom Machine Design
Depending on the customer's application, we can modify our machines to achieve customer's convenience and high production efficiency.
After-Sales Service
• We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the laser machine, and will provide technical guidance via remote means, such as TeamViewer, email, phone, mobile, Whatsapp, Skype, 24/7 online chat, etc., when you encounter installation, operation or adjustment problems. (Recommended)
• You can come to our laser machine factory for training. We will provide professional guidance. Direct and effective face-to-face training. We have assembled machines, various tools and testing facilities here. Training time: 3 to 5 days (recommended)
• Our engineers will provide on-site guidance and training services in your local area. We need your assistance in visa procedures, prepayment of travel expenses, and accommodation before the dispatch and during the service. During the training, it is best to arrange a translator for our engineers (if they do not speak English).
Warranty Policy
• 3 years for the whole machine, 18 months for the laser, 12 months for the chiller, no warranty for the lens/mirror/nozzle.
• Long-term lifetime maintenance, the after-sales department will provide 24/7 English online support.
• Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period.
• After the warranty period, the buyer only needs to pay for the actual repair costs.
• Certificate support: CE, FDA, SGS.
Small Package
Strong waterproof bottom made of plywood.
Spare parts for the laser source (separate plywood housing) and laser bed.
Corners are protected with foam and secured with protective film.
All covered with a strong, hard protective film.
Vacuum packed
Internal steel frame protectors
Plywood packaging and steel strapping outside to secure the box.
Packing is done using regular containers or flat rack containers.
Related Product Recommendation
JG12035P3- JG6020S
JG1390CPortable Fiber Laser Cutting Machine For Precision Metal Processing- JG6020DC
JG3015DCFull-Protective Sheet And Tube Fiber Laser Cutting Machine- JG3015S2024 Best Rated Fiber Laser Cutting Machine for Sale - 2000W
- JG6024P2Pipe Laser Cutting Machine

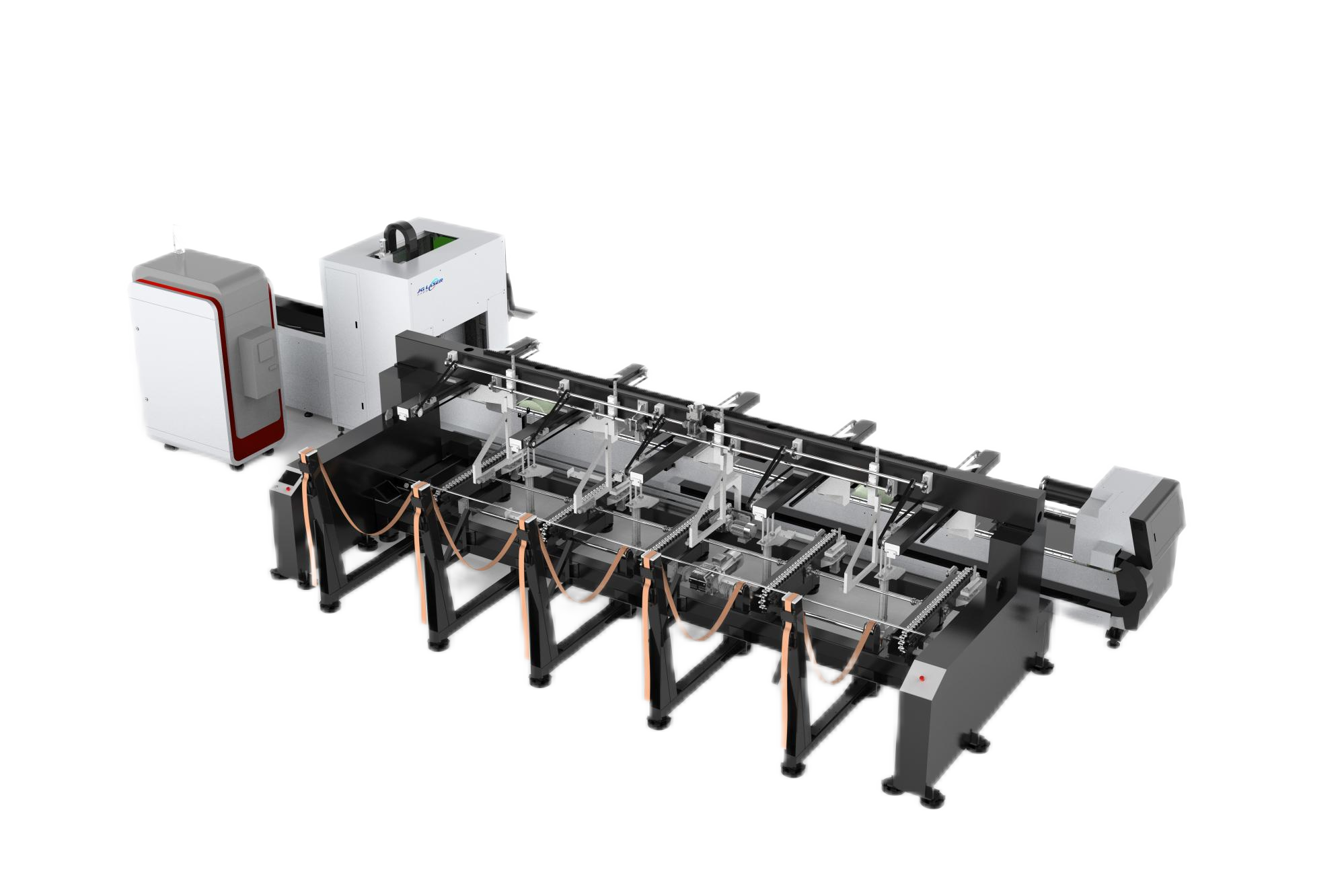

- JG6024PA2Cnc Metal Tube Laser Cutting Machine With Automatic Feeding System
