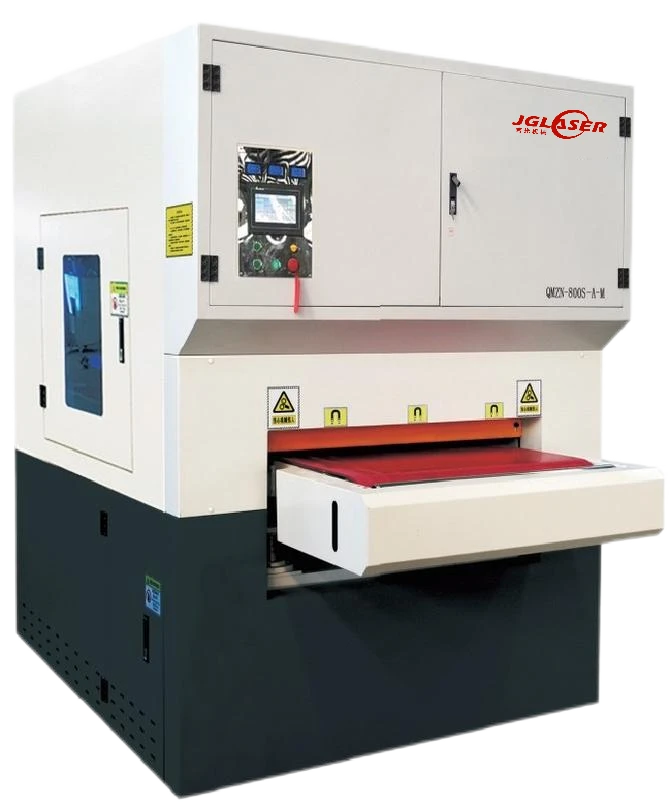

JG-450/800/1000/1300S-A-M
METAL DEBURRING AND CHAMFERING MACHINE

The Deburring Series Equipment Includes Wide-Width Abrasive Belt/Rotating brush roller, Multi-Station Combination Grinding Multifunctional Models. The Equipment Can Realize One-Pass Processing of Single-Sided or Uniform Removal of Slag Burrs Formed by Laser Cutting, Plasma Cutting, Flame Cutting, Stamping, Machining, Stainless Steel Plates, Aluminum Plates, Copper Plates, Carbon Steel Plates, etc. On Metal Plates. It is Suitable for Pre-Grinding of Metal Plate Surfaces, Deburring of Holes and Edge Rounding, Surface Drawing, Deoxidation and Other Processing Technologies, Eliminating the Troubles of Low Efficiency, Flying Dust and Inconsistent Workpiece Grinding in Manual Grinding.
  • JG-450/800/1000/1300S-A-M

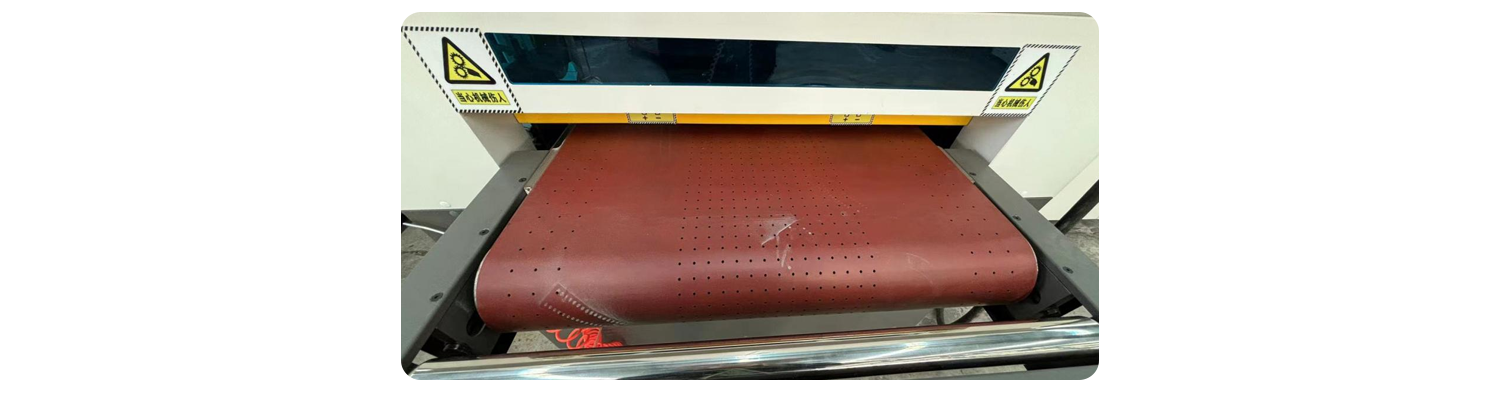

Conveyor Belt


The Conveyor Belt Supports Two Types of Conveying and Feeding: Strong Permanent Magnetic Adsorption and Vacuum Negative Pressure Adsorption.



Conveyor belt.png

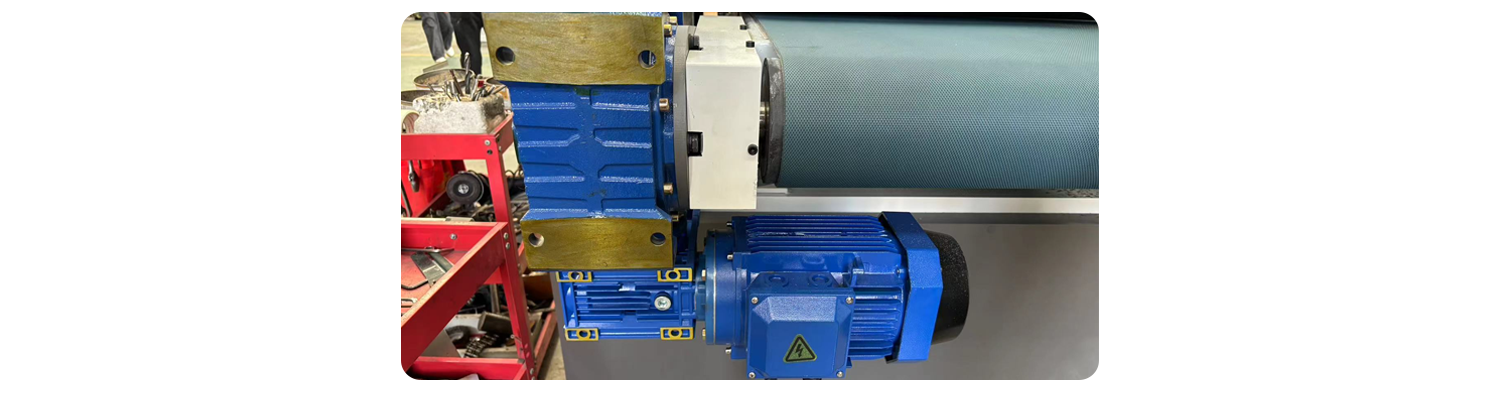

Conveyor Motor


The sanding machine speed is adjustable, which can be adjusted according to the needs of the plate being processed to achieve better sanding effect.



Conveyor Motor.png

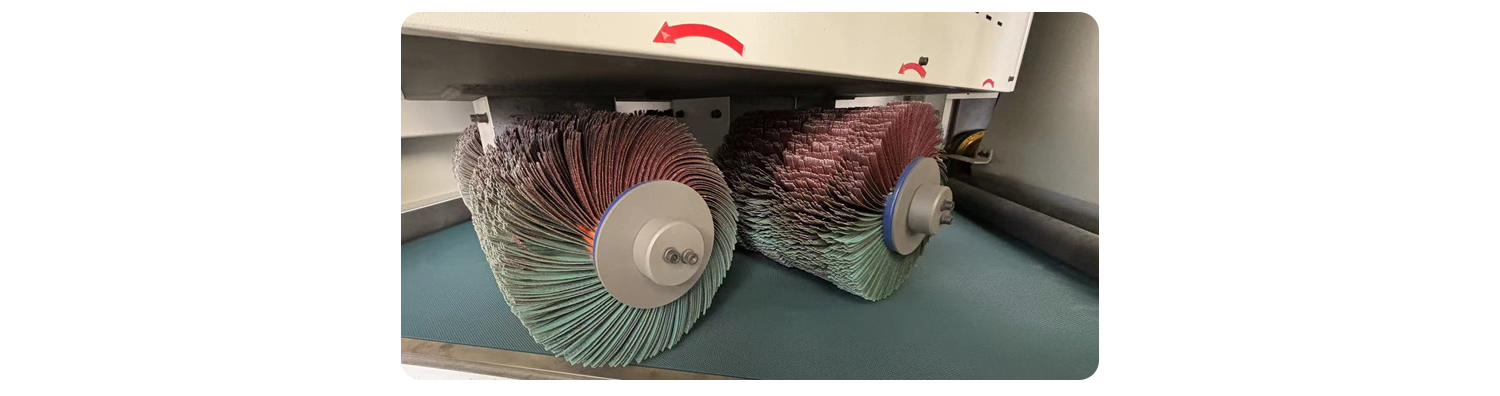

Universal Roller Brush


The Grinding Unit Consists of 4/6/8 Roller Brushes Arranged in Parallel. The Alternate Rotation and Self-Rotation of the Roller Brushes Enable the Abrasive Belt to Grind the Workpiece Without Dead Angles, Thus Achieving Deburring and Chamfering.


Universal Roller Brush.png

Cutting Samples

  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M
  • JG-450/800/1000/1300S-A-M

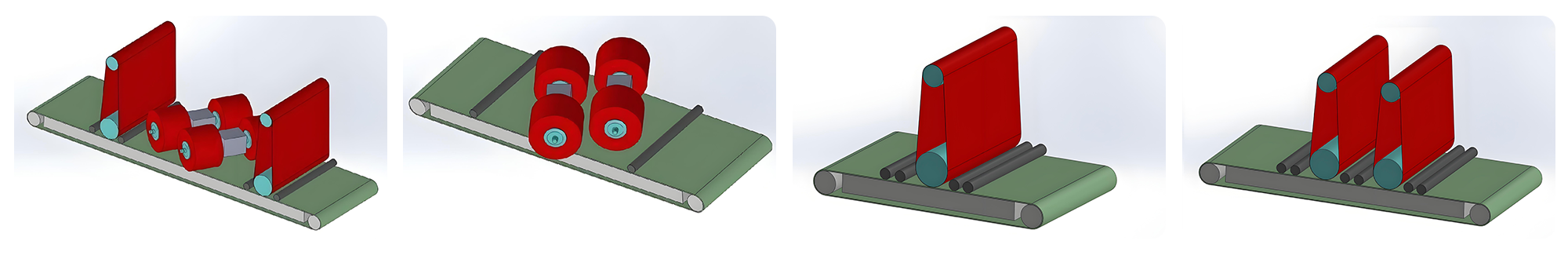

Optional Structure


Optional structure.png


Parameter Configuration


NameJG-450/800/1000/1300S-A-M
Maximum machining width1000mm
Fixed transpotation methodVacuum adsorption
Processing thickness0.8-80mm
Sand belt size1020*2200mm
Minimum processing size60*60mm
Roller brush diameter300mm*300mm*40mm
Number ofroller brushes6个
Power up and down1.5KW
Feeding speed (frequency conversion)1-5m/min
Rubber roller diameter (eccentric)195mm
Total power35kw
Working pressure≥0.55Mpa
External dimensions4000*1800*2300mm
Weight4400kg
Default voltageThree-phase 380v
Electrical componentsChint/Delixi
Grinding shellStandard double sanding belts,customizable multiple sanding bells


Dry Dust Collecto 2.jpg
Dry Dust Collecto 1.jpg

Dry Dust Collecto

Performance Characteristics
This device is mainly used for processing grinding dust,smoke,etc.,and is an ideal environmentll friendly equipment

Wet Vacuum Cleaner.jpg
Wet Vacuum Cleaner1.jpg

Wet Vacuum Cleaner

Performance Characteristics
This device is mainly used for processing grinding dust,smoke,etc.,and is an ideal environmentll friendly equipment

Wet Vacuum Cleaner

Consumables

  • Conveyor Belt
    Conveyor Belt
  • Drawing Roller
    Drawing Roller
  • Sand Belt
    Sand Belt
  • Universal Roller Brush
    Universal Roller Brush.

Pre-Sales Service

Free Sample Cutting Service

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will cut it in our factory and make a video to show you the cutting process and results, or send you a sample to check the cutting quality.

Advancing Solution Design

According to the customer's product processing requirements, we can design unique solutions for customers to support higher manufacturing efficiency and better processing quality.

Custom Machine Design

Depending on the customer's application, we can modify our machines to achieve customer's convenience and high production efficiency.

After-Sales Service

• We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the laser machine, and will provide technical guidance via remote means, such as TeamViewer, email, phone, mobile, Whatsapp, Skype, 24/7 online chat, etc., when you encounter installation, operation or adjustment problems. (Recommended)
• You can come to our laser machine factory for training. We will provide professional guidance. Direct and effective face-to-face training. We have assembled machines, various tools and testing facilities here. Training time: 3 to 5 days (recommended)
• Our engineers will provide on-site guidance and training services in your local area. We need your assistance in visa procedures, prepayment of travel expenses, and accommodation before the dispatch and during the service. During the training, it is best to arrange a translator for our engineers (if they do not speak English).

Warranty Policy

• 3 years for the whole machine, 18 months for the laser, 12 months for the chiller, no warranty for the lens/mirror/nozzle.
• Long-term lifetime maintenance, the after-sales department will provide 24/7 English online support.
• Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period.
• After the warranty period, the buyer only needs to pay for the actual repair costs.
• Certificate support: CE, FDA, SGS.

Small Package

Strong waterproof bottom made of plywood.

Spare parts for the laser source (separate plywood housing) and laser bed.

Corners are protected with foam and secured with protective film.

All covered with a strong, hard protective film.

Vacuum packed

Internal steel frame protectors

Plywood packaging and steel strapping outside to secure the box.

 Packing is done using regular containers or flat rack containers.
